B E A T I N G   S I G N A L   -   T H E   S T O R Y

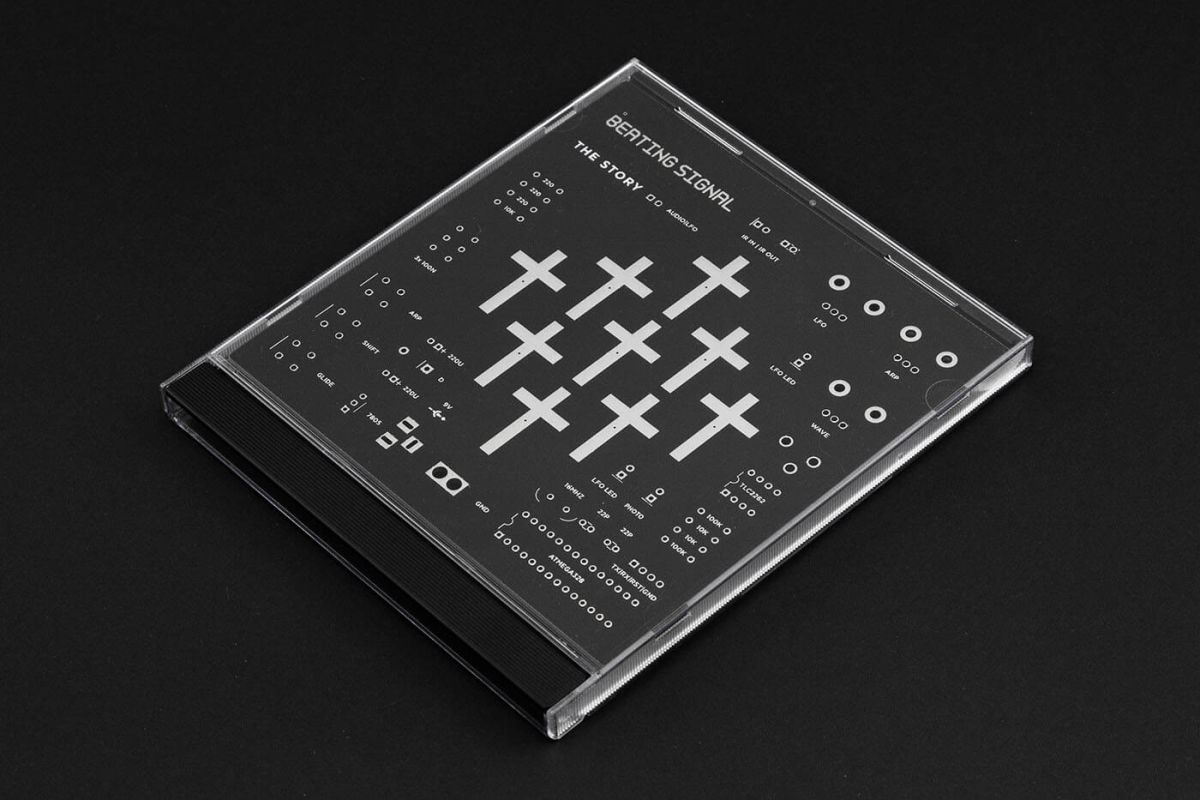

I designed the cover artwork for Beating Signal's new single The Story.

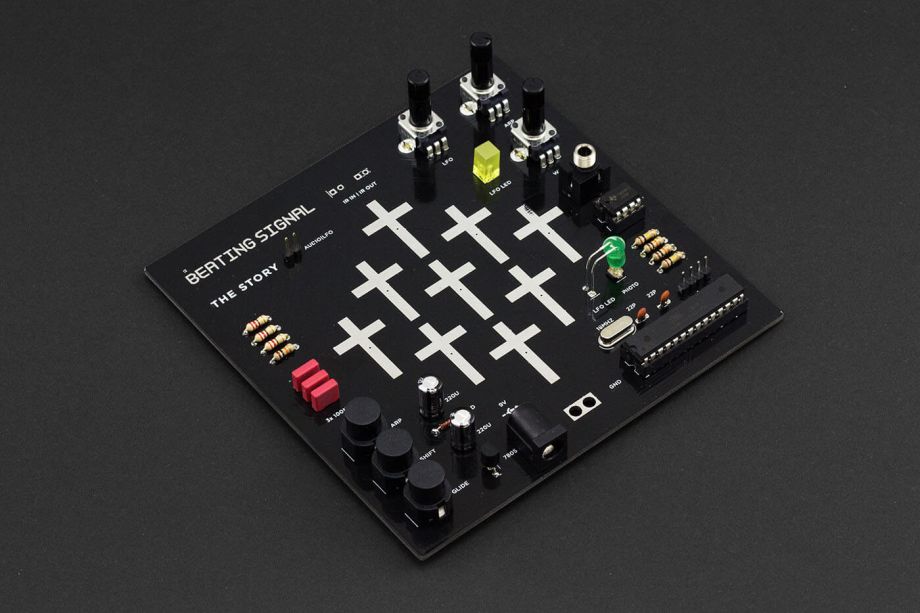

It consists of a printed circuit board that can be used to build a working mini synthesizer.



Using just a handful of cheap components, the synth can easily be assembled in under an hour even by beginners. The software can be transferred using a regular Arduino or FTDI/USB adaptor. The approachable Arduino-based software and additional pins and connectors allow for straightforward experimentation and modifications by the user.


The synthesizer can be played by touching the cruciform conductive pads with a wire connected to the ground plane of the circuit board.

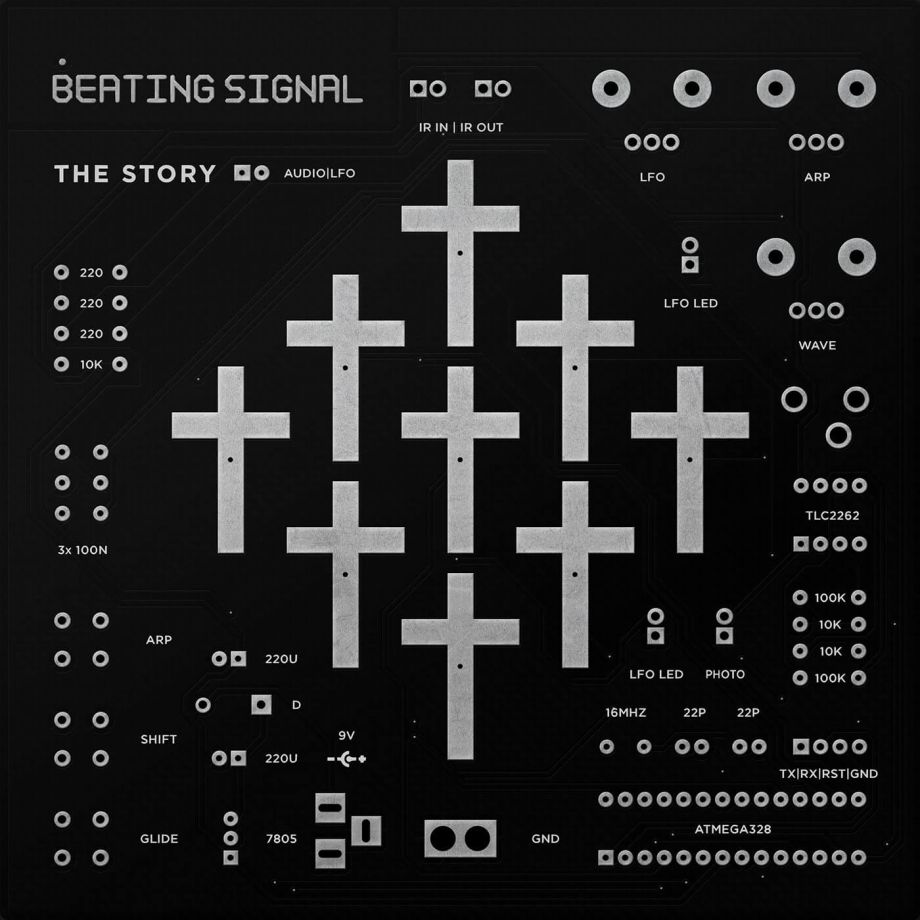

A photoshop rendering of the cover for streaming.

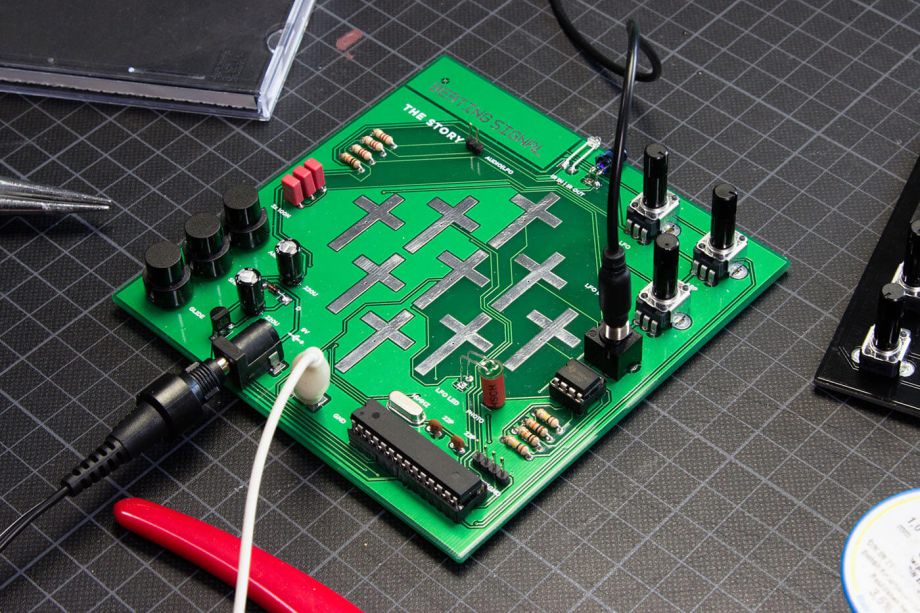

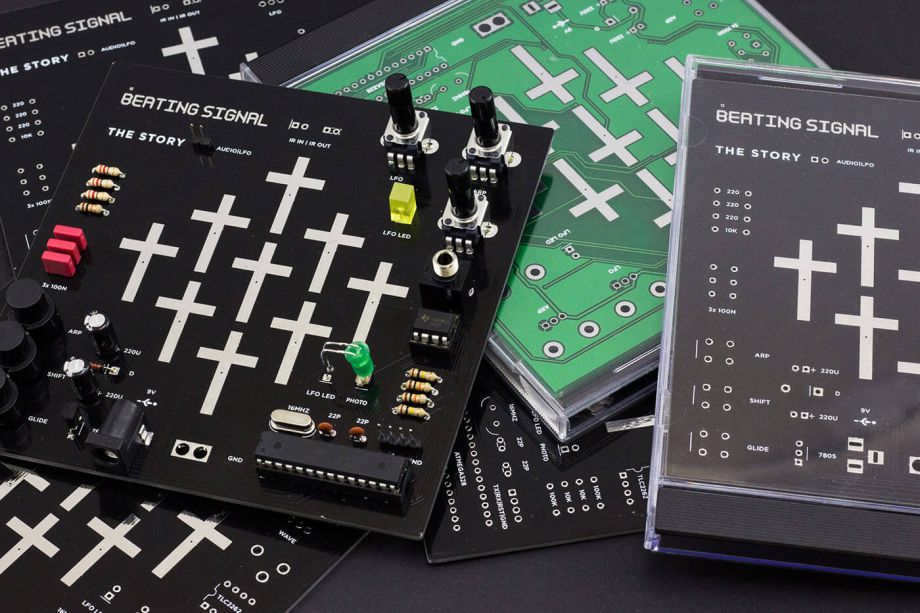

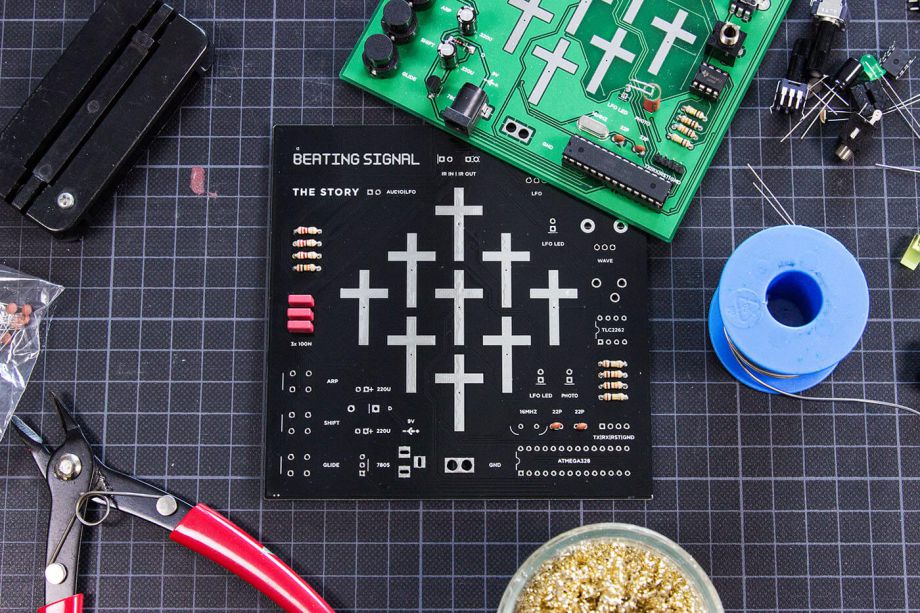

Work in progress and assembly shots also depicting the super-limited pcb green prototype edition.


The synthesizer is based on the Nebulophone by Bleep Labs.
Software and design files are available on Github.
